UNITEC-B

Ta kontakt via skjemaet under for pris


Forespør et pristilbud for dette produktet:

  • Produktinfo
  • Produktanmeldelser (0)

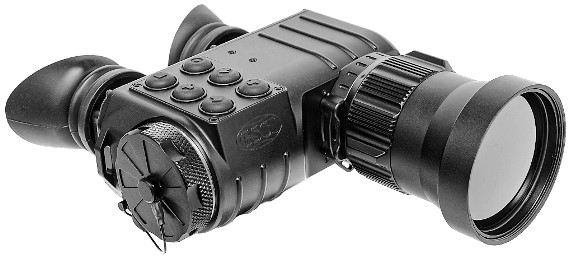

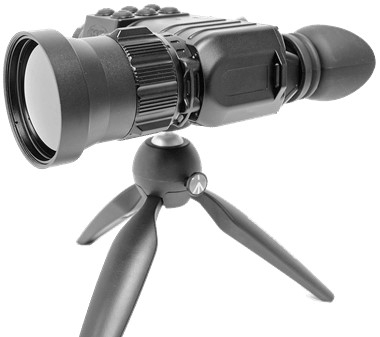

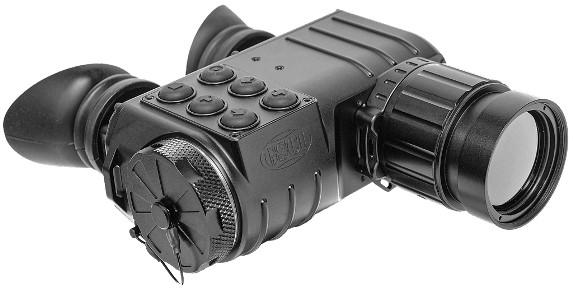

Introducing the UNITEC-B, an elite thermal binocular system engineered to excel in a diverse range of applications, catering specifically to reconnaissance and tactical surveillance missions spanning medium- to long-range distances.

At the heart of each UNITEC-B lies a state-of-the-art silent sensor, representing the pinnacle of cutting-edge technology. Complemented by GSCI’s proprietary hardware and software solutions, this sensor harnesses unrivaled image quality, while bestowing unique tools that confer tactical superiority and guarantee user safety.

The UNITEC-B features a dual-AMOLED display system, showcasing a high-resolution AMOLED display for each individual eyepiece, eliminating any moving components. This design ensures seamless operation and allows for extended viewing periods without causing undue strain on the eyes.

Encased within a robust, full-aluminum enclosure, the UNITEC-B emerges as the consummate thermal imaging solution, specifically engineered to meet the exacting demands of day and night operations that necessitate exceptional long-range observation capabilities.

The UNITEC-B stands as a testament to GSCI’s unwavering commitment to equipping military and law enforcement professionals with an unparalleled thermal binocular system, renowned for its superior performance in the field. With uncompromising image quality and an unwavering focus on mission success, the UNITEC-B embodies the pinnacle of advanced thermal imaging technology.

UNITEC-B Specifications

  • FPA Refresh Rate: 9Hz or 50Hz
  • 12-micron and 17-micron Options
  • Digital Zoom: 2X, 4X
  • Display: Full Size: 0.5-Inch, Dual-AMOLED, Colour, 800×600
  • Imaging Modes: Monochrome + 8 Colour Palettes
  • Compass: Yes
  • Inclinometer: Yes
  • Gyroscope: Yes
  • Digital Video Recorder: Optional – Built-In or External
  • Power Source: 4x AA and External (e.g. MVP-240)
  • Battery Life: Up to 8 hours on 4x AA and up to 16 hours with MVP-240
  • Operating Temperature: -40°C .. +50°C
  • Manufacturer’s Warranty: 7 Years, Limited

UNITEC-B Features

  • Dual-Eye Observation
  • Designed for Professional Use
  • Set of Curated Technological Features
  • Ultra-Long Range Performance
  • Total Magnification up to 32X
  • Optionally Aided by Various Target Location Features
  • Outstanding Endurance and Reliability
  • Latest Generation Hardware and Software
  • Battle-Proven MIL-STD Enclosure
  • Precision-Crafted to Tightest Tolerances
  • Powered by AA Batteries in Quick-Swap Cartridges
  • Extra Long Autonomy on MVP-240 Pack: up to 16 Hours

General Specifications



UNITEC-B 17µm Series



UNITEC-B 12µm Series

Sensor Resolution

640×480

640×512

Pixel Pitch

17 microns

12 microns

Detector Type

Uncooled, a-Si

Uncooled, VOx

Refresh Rate

9Hz or 50Hz

9Hz or 50Hz

Optical Zoom Options

2x / 3x / 4x

2.8x / 4.25x / 5.7x

Digital Zoom

1x, 2x, 4x, 8x

1x, 2x, 4x

Stow Safety Feature

Yes

Yes

9-Axis HUD Feature

Yes

Yes

Digital Video Recorder

Optional

No

Universal Port

Yes

Yes

Power Source

4x AA or MVP-240

4x AA or MVP-240

Battery Life (4x AA)

7 Hours

6 Hours

Battery Life on MVP-240

25 Hours

24 Hours

Environmental Protection

Waterproof

Waterproof

Operating Temperature

-40°C .. +50°C

-40°C... +50°C

Warranty

7 Years, Limited

7 Years, Limited
